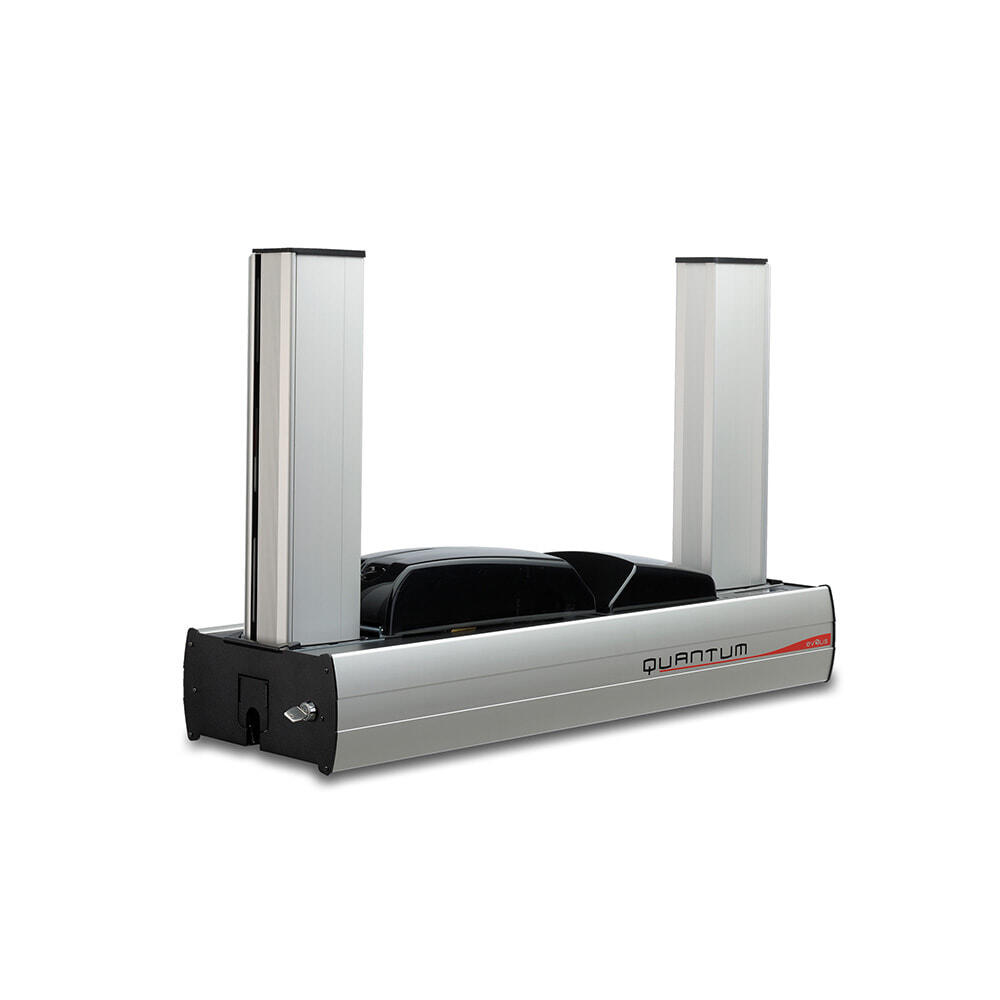

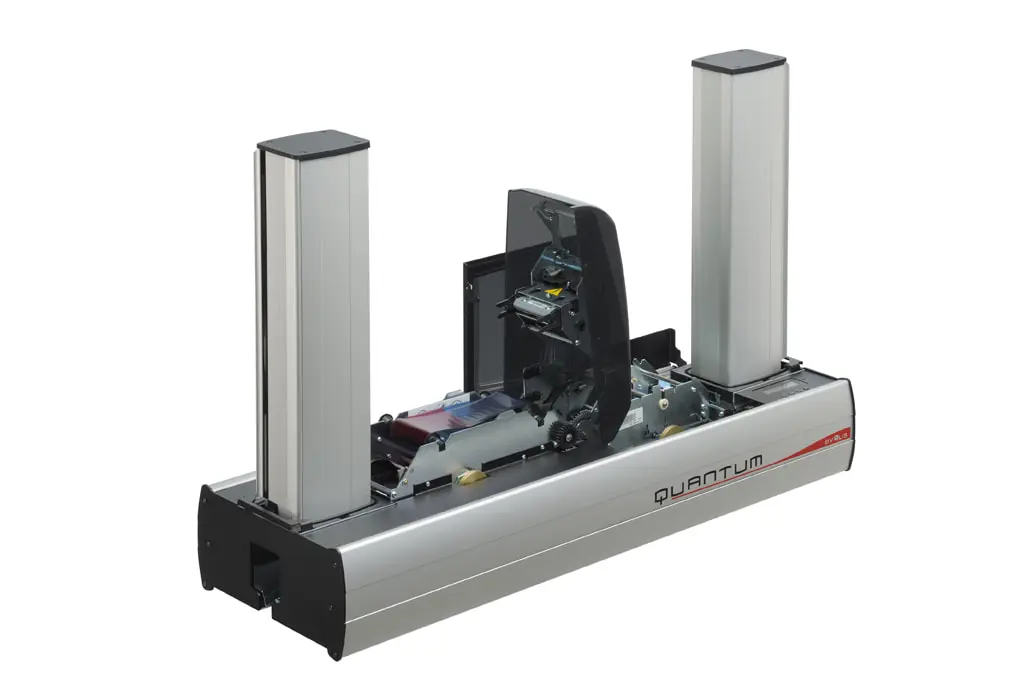

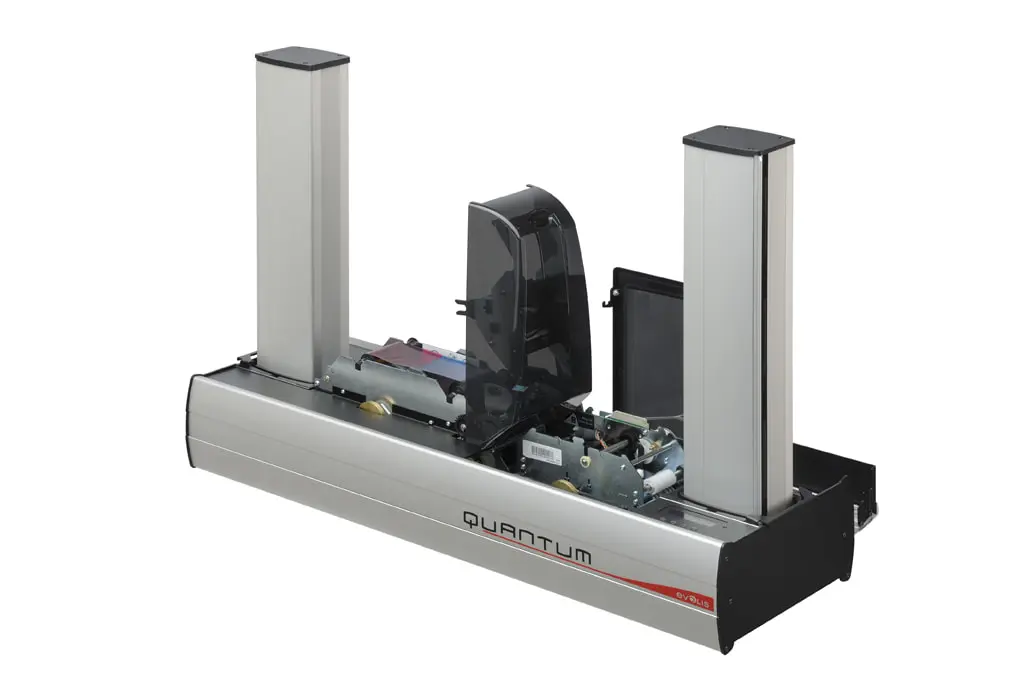

Quantum2 ID Card Printer

The Quantum2 ID card printer is ideal for large volume print runs and bureau print service printing. Mass personalisation of cards, suited for full-colour printing as well as adding black text to pre-printed cards.

ENQUIRE ABOUT THIS PRINTER

Print bureau and large volume printing

The Quantum2 plastic card printer is one of the fastest printers in the market, and this next generation printer matches top-of-the-range performances with higher image resolution for the best printed plastic card.

Warranty

The Quantum2 card printers proudly carry the stamp of Evolis’ strong commitment to reliability, and therefore, benefits from unmatched quality along with a 1-year warranty.

Accessories & Consumables

Accessories and Consumables

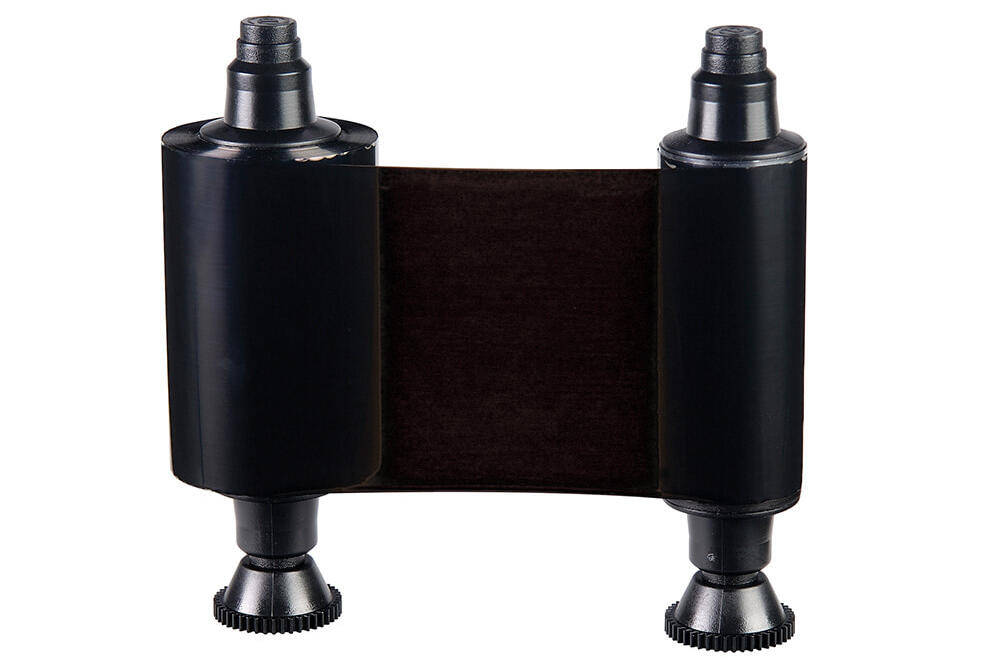

R2011_Black-Mono-Ribbon
BLACK Ribbon
1000 prints per roll
R2011
$ 55.00

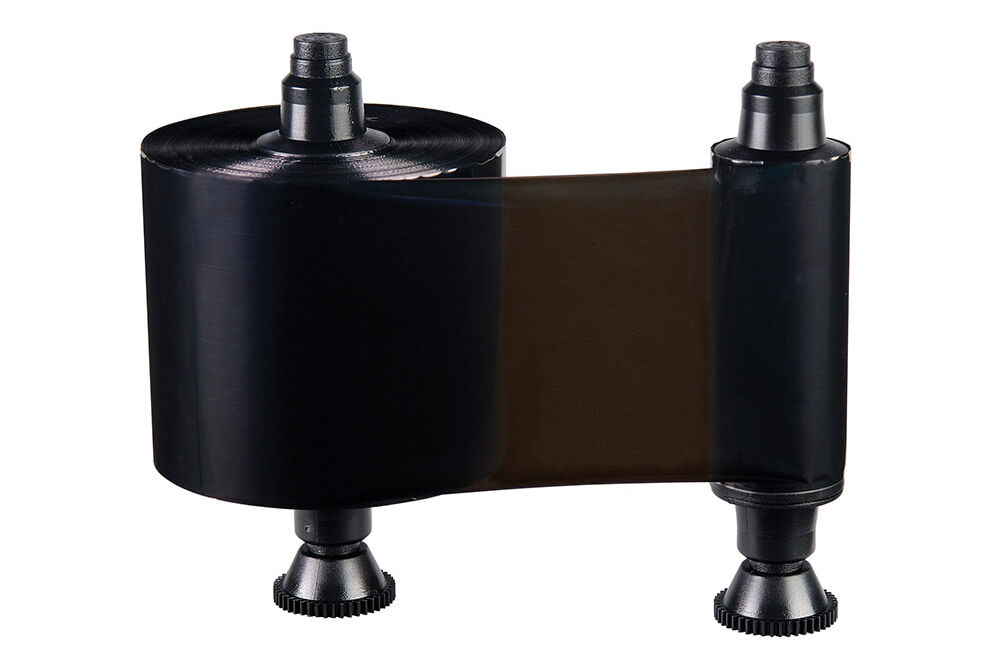

R2121-Qtm2-unrolled
Qtm2 High Yield Black Ribbon
3000 prints per roll. For Quantum2 Bureau printers only
R2121
$ 80.00

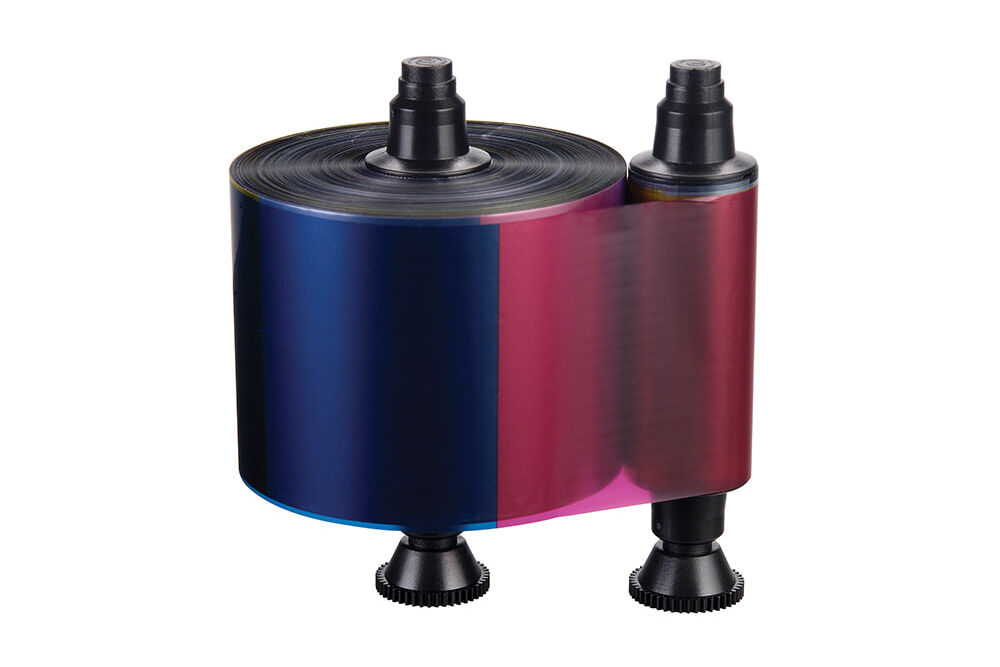

R3511-Qtm2-YMCKO-Colour-Ribbon
Qtm2 YMCKO Colour Ribbon
500 printer per roll. Full colour YMCKO
R3511
$ 295.00

Specifications

Technical specifications

Direct-to-card dye-sublimation/Resin thermal transfer

Edge-to-edge printing, single or dual-sided

300 dpi print head

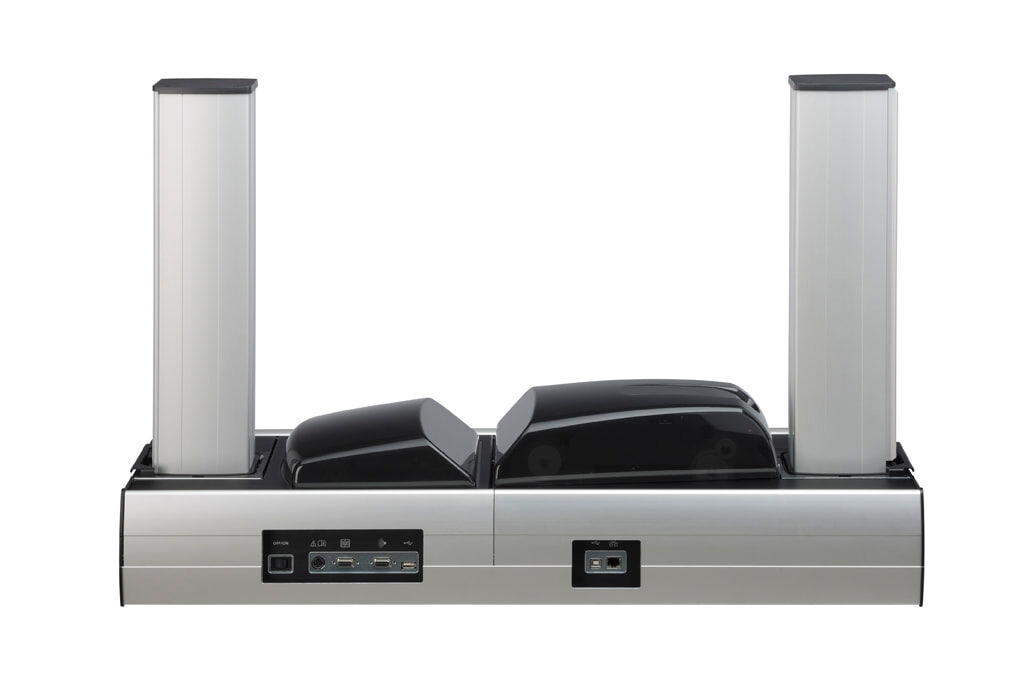

Interfaces: USB, Ethernet

Interchangeable input and output hoppers, capacity of 500 cards each

Printing performances
Single side: 144 cards/hour
Dual side: 115 cards/hour

Reversible Mag encoding module

1-year warranty

Delivered with cardPresso XXS for designing and editing badges

Options

Standard Printer & Additional Packs

No locking system & short door for the card hoppers

PRODUCT CODE

PRODUCT DESCRIPTION

QTM306GRH-BS000-MB1

Quantum 2 Bundle including:
1 x QTM306GRH-BS – Quantum 2 Standard Mag Iso, Smart contact station, Contactless ready
1 x QTM3-KT001 – Production Pack – for Standard version
1 x QTM3-KT002 – Backup Pack – for Standard version

QTM306GRH-BS

Quantum 2 Standard Mag Iso, Smart contact station, Contactless ready

QTM3-KT001

Quantum Production Pack – for Standard version
aiming at improving Quantum 2 user operation and reduce downtime including:
1 x Detachable card hopper (short door)- Capacity 500 cards @ 30mil/ 0,76mm
1 x Set of 2 cleaning rollers
1 x Extended cleaning kit (50 cleaning cards + 25 cleaning swabs + 1 box of 60 cleaning wipes)

QTM3-KT002

Quantum Backup Pack – for Standard version
aiming at providing the end-user with critical components replacement kit to avoid production down time or stoppage including:
1 x Quantum printing head kit1 x Quantum Up/Down encoding module (reversible module)
1 x Detachable card hopper (short door) – Capacity 500 cards @ 30mil/ 0,76mm

Secured Printer

Locking system & long door for the card hoppers

PRODUCT CODE

PRODUCT DESCRIPTION

QTM306GRH-BS00K

Quantum 2 Secured (with a centralized locking system) Mag Iso, Smart contact station, Contactless ready

Options

PRODUCT CODE

PRODUCT DESCRIPTION

Factory mounted, to be ordered together with the printer

QTM2-OPHS

Springcard Crazy Writer HSP encoding module

QTM2-OPG

Evolis Elyctis Smart contact chip encoding module

QTM2-OPHLB

Evolis-Elyctis Dual chip encoding module

QTM2-OPOMN

Omnikey 5122 encoding module

Field Upgradable

QTM2-KTHS

Springcard Crazy Writer HSP encoding kit

S10175

SAM extension board kit for SpringCard Crazy Writer HSP
Incl. 3 SAM slots board for SpringCard Crazy Writer HSP, screws and spacers

QTM2-KTG

Evolis Elyctis Smart contact chip encoding module

QTM2-KTHLB

Evolis-Elyctis Dual chip encoding module

S10176

SAM extension board kit for Evolis Elyctis Dual
Incl. 2 SAM slots board for Evolis Elyctis Dual, screws and spacers

QTM2-KTOMN

Omnikey 5122 encoding kit

How to files

How to install ribbon into Quantum2
How to clean Quantum2 cleaning rollers
Quantum2 - How to clean the interior card transportation system
How to clean Quantum2 print head
How to thoroughly clean Quantum2
Quantum2 - How to rotate the encoding module
Quantum2 - How to print a tech card
Quantum2 - How to use the reject box
Quantum2 - How to lock the printer

Evolis Quantum2

The printer comes standard with a removable encoding module for combined encoding of magnetic stripe cards, contact smart cards and contactless cards. Quantum2 can be customized on-site to meet your specific needs as they evolve.

Thanks to its feed tray and stacker with a capacity of 500 cards each, the Quantum printer can deliver more than 1000 cards per hour in monochrome and more than 150 cards in colour. With the reversible encoding module that is independent from the print module, the car

Quantum is also available in a secure version

Quantum has an optional central locking feature to protect access to consumables (cards and ribbon) and to the encoding module, to make your card issuance system safe and secure.

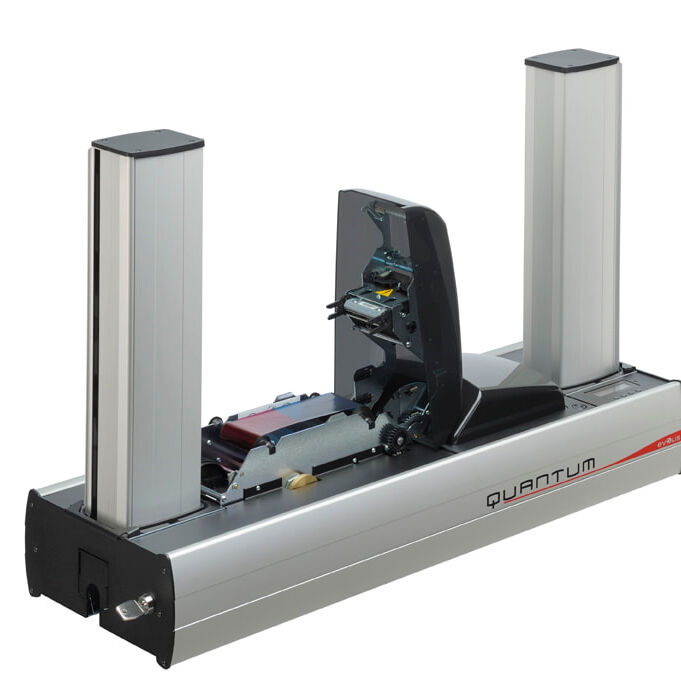

QUANTUM2_9[72dpi]

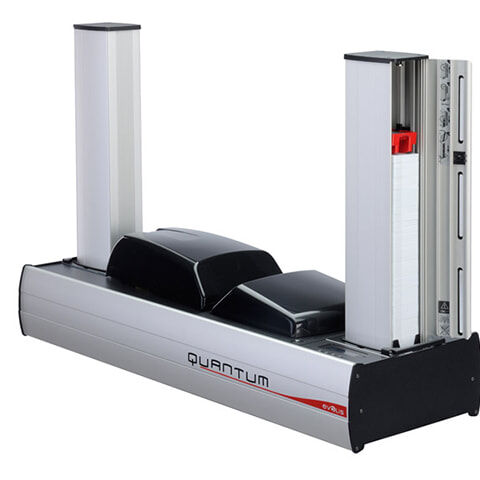

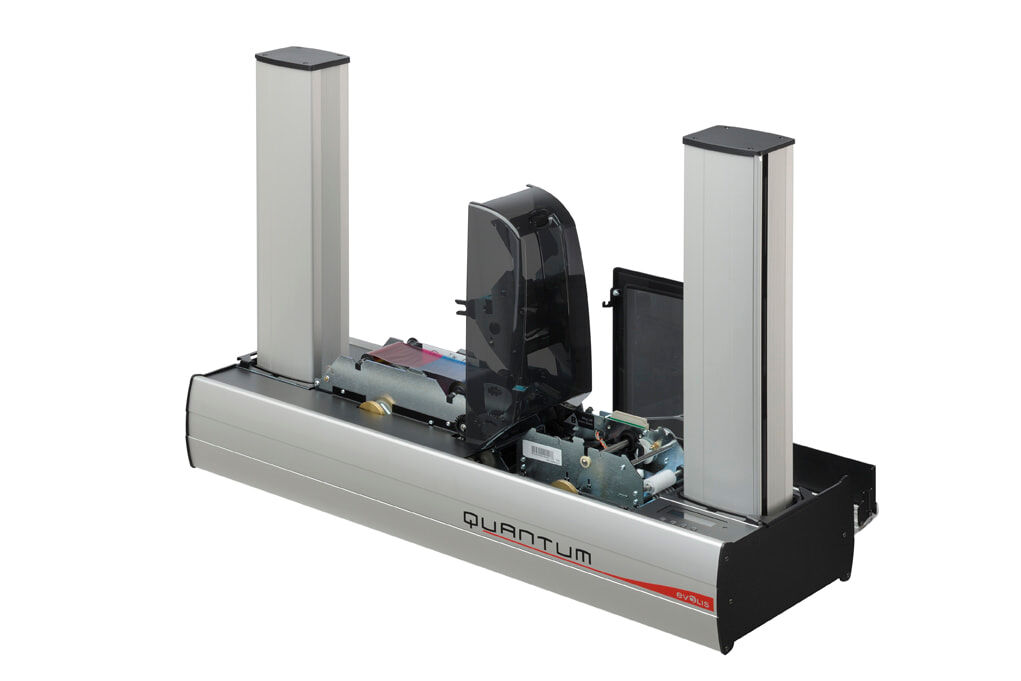

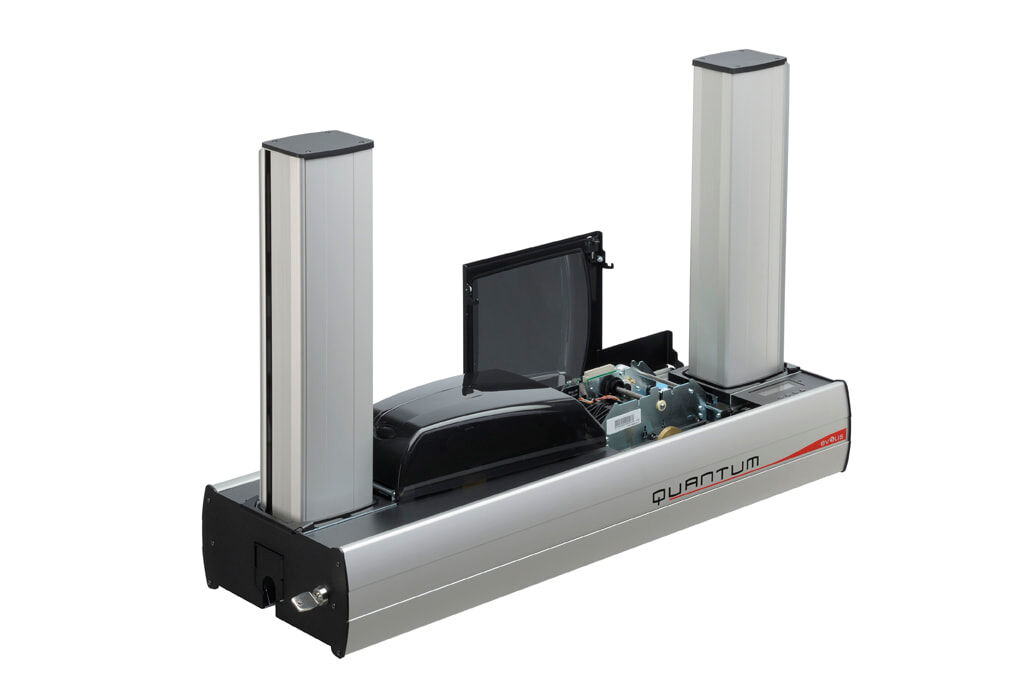

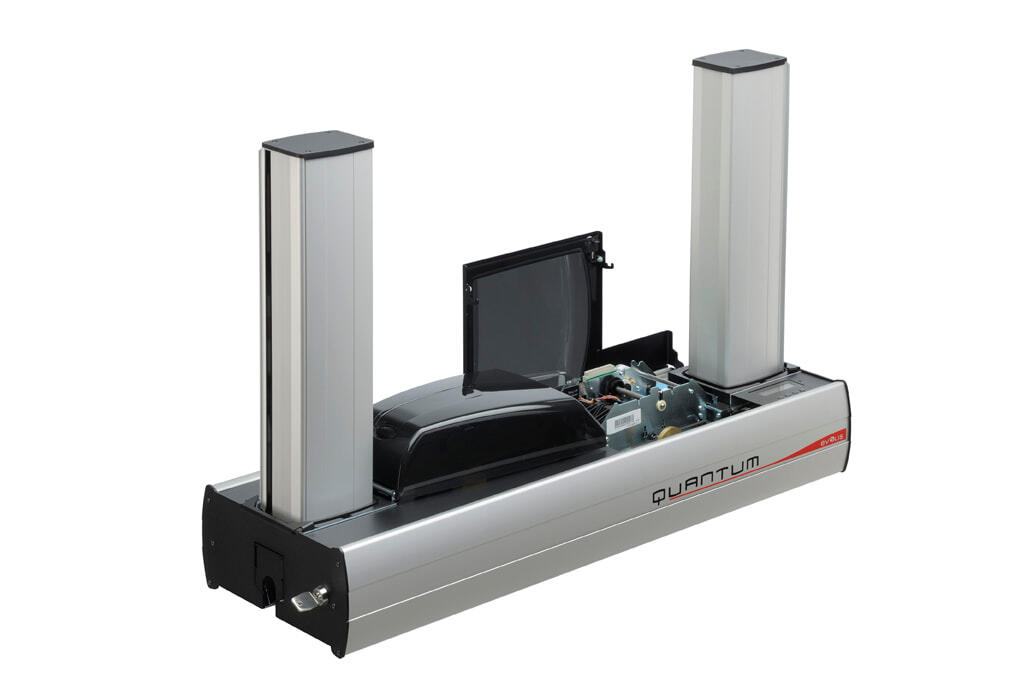

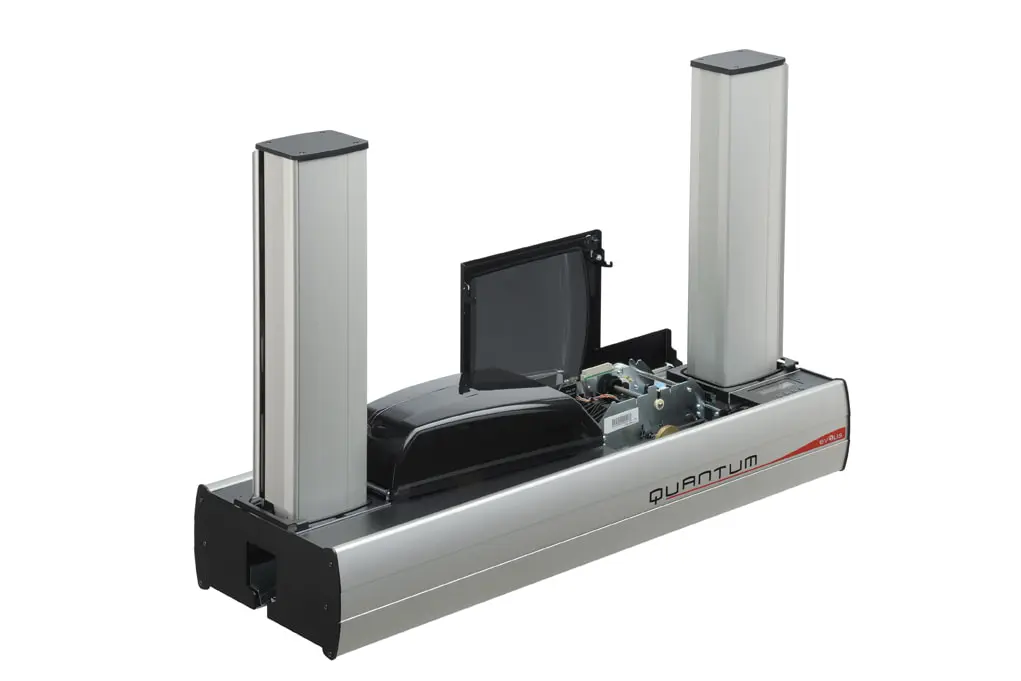

Quantum-profile-door-opened
ENQUIRE ABOUT THIS PRINTER

Card management and specifications

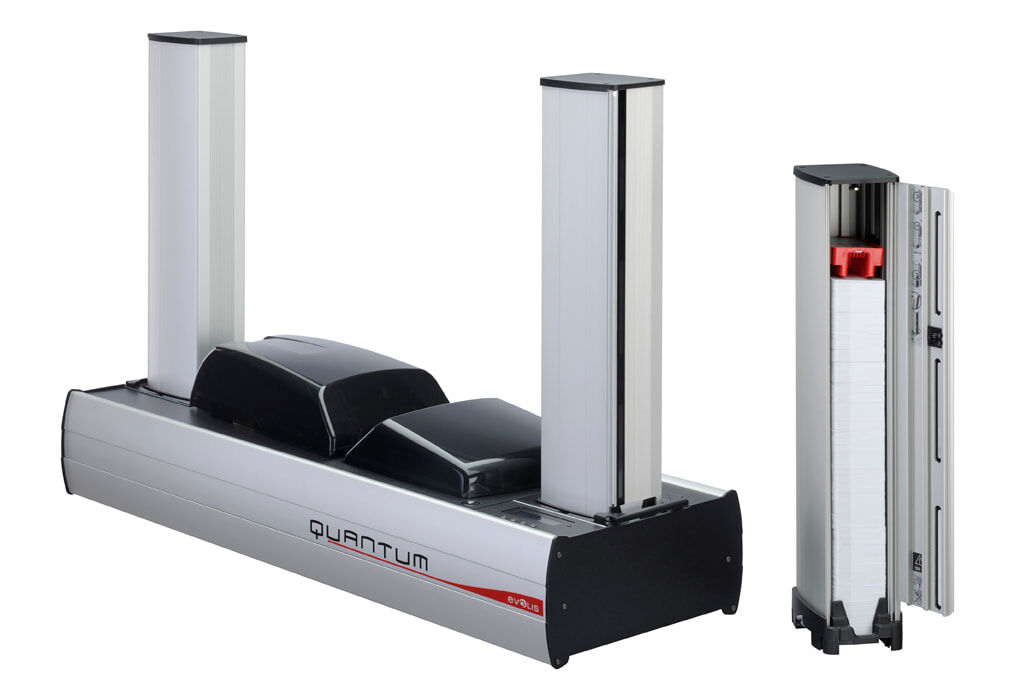

  • Detachable and interchangeable card input feeder and output stack with 500 cards capacity (0.76 mm - 30 mil)

  • Reject hopper for defective cards with a capacity of 20 cards (0,76mm - 30mil)

  • Card types:

  • PVC cards

  • Composite PVC cards

  • PET cards

  • ABS cards1

  • Special varnished cards1

  • Card format: ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm)

  • Thickness: 0.76mm to 1mm (30 to 40 mil)
